S5ULM2596

Simple Switcher Power Converter 150KHz 3A Step-Down Voltage Regulator

S5ULM2596 Features

* High Efficiency Min. 4.40 0.66 0.00 0.36 2.29 9.80 Millimeter REF. Max. 4.80 c2 0.91 L2 0.30 B D 0.5 e 2.79 L 10.4 Min. Max. 1.25 1.45 1.27 REF. 8.6 9.0 1.70 REF. 14.6 15.8 0˚ 8˚ Millimeter

* Input Voltage Range Up To 40V

* 150KHz Fixed Frequency Oscillator

* 3.3V,5V,12V and

S5ULM2596 General Description

The S5ULM2596 series of regulators are monolithic integrated circuits that provide all active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. These devices are available in fixed output voltage of 3.3V,5V,12V and an adjustable.

S5ULM2596 Datasheet (1.16 MB)

Preview of S5ULM2596 PDF

Datasheet Details

Part number:

S5ULM2596

Manufacturer:

SeCoS

File Size:

1.16 MB

Description:

Simple switcher power converter 150khz 3a step-down voltage regulator.

📁 Related Datasheet

S5ULM2576 Simple Switcher 3A Step-Down Voltage Regulator (SeCoS)

S5U1118 1A Positive Low Dropout Fixed-Mode Regulator (SeCoS)

S5U1284 4A Ultra Low Dropout Positive Adjustable or Fixed-Mode Regulator (SeCoS)

S5U13781R00C10M User Manual (EPSON)

S5U2167 750mA CMOS Positive Voltage Regulator (SeCoS)

S5U2178 CMOS Low Dropout Voltage Regulator (SeCoS)

S5U2179 CMOS Low Dropout Voltage Regulator (SeCoS)

S5U2187 750mA CMOS Positive Voltage Regulator (SeCoS)

S5U2188 1.5A CMOS Low Dropout Voltage Regulator (SeCoS)

S5U2189 1.55A CMOS Low Dropout Voltage Regulator (SeCoS)

TAGS

S5ULM2596 Simple Switcher Power Converter 150KHz Step-Down Voltage Regulator SeCoS

Image Gallery

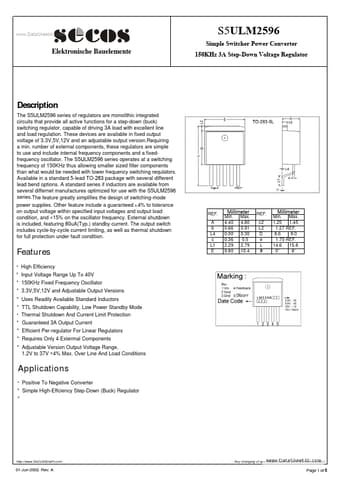

S5ULM2596 Datasheet Preview Page 2 S5ULM2596 Datasheet Preview Page 3
