2N2920 Datasheet - Seme LAB

2N2920 DUAL NPN PLANAR TRANSISTORS

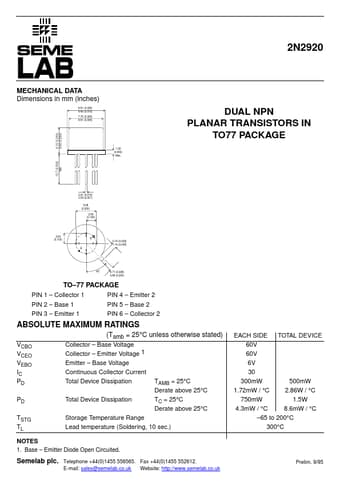

2N2920 MECHANICAL DATA Dimensions in mm (inches) 8.51 (0.335) 9.40 (0.370) 7.75 (0.305) 8.51 (0.335) 6.10 (0.240) 6.60 (0.260) DUAL NPN PLANAR TRANSISTORS IN TO77 PACKAGE 1.02 (0.040) Max. 12.7 (0.500) Min. 0.41 (0.016) 0.53 (0.021) 5.08 (0.200) 2.54 (0.100) 2.54 (0.100) 3 2 4 5 6 0.74 (0.029) 1.14 (0.045) 1 45˚ 0.71 (0.028) 0.86 (0.034) TO 77 PACKAGE PIN 1 Collector 1 PIN 2 Base 1 PIN 3 Emitter 1 PIN 4 Emitter 2 PIN 5 Base 2.

2N2920_SemeLAB.pdf

Preview of 2N2920 PDF
2N2920 Datasheet Preview Page 2

Datasheet Details

Part number:

2N2920

Manufacturer:

Seme LAB

File Size:

19.47 KB

Description:

Dual npn planar transistors.
