2N2920AHR - Hi-Rel NPN dual matched bipolar transistor

Datasheet Summary

Description

2N2920AK and SOC2920AHR are NPN dual matched transistors available in Flat-8 and LCC-6 hermetic packages and able to operate under severe environment conditions.

Features

  • Vceo IC(max. ) 60 V.
  • Hermetic packages.
  • ESCC qualified 0.03 A HFE at 10 V, 150 mA > 300 Tj(max. ) 200 °C.

📥 Download Datasheet

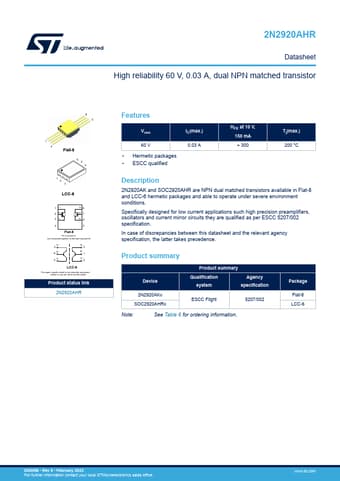

Datasheet preview – 2N2920AHR
