2N2905 Datasheet - STMicroelectronics

2N2905 Silicon Planar PNP Transistor

The 2N2905 and 2N2907 are silicon planar epitaxial PNP transistors in Jedec TO-39 (for 2N2905) and in Jedec TO-18 (for 2N2907) metal case. They are designed for high speed saturated switching and general purpose application. 2N2905 approved to CECC 50002-102, 2N2907 approved to CECC 50002-103 availa.

2N2905_STMicroelectronics.pdf

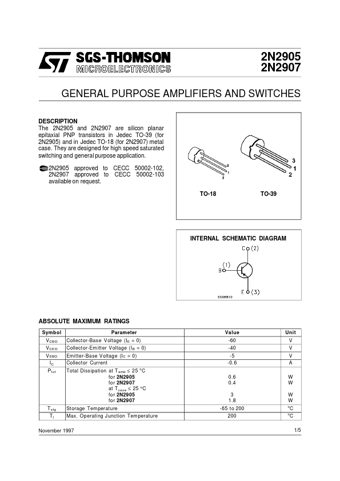

Preview of 2N2905 PDF
2N2905 Datasheet Preview Page 2 2N2905 Datasheet Preview Page 3

Datasheet Details

Part number:

2N2905

Manufacturer:

STMicroelectronics ↗

File Size:

48.34 KB

Description:

Silicon planar pnp transistor.
