2N2920DCSM - DUAL NPN TRANSISTORS

Datasheet Summary

Features

4.32 ± 0.13 (0.170 ± 0.005) 2.54 ± 0.13 (0.10 ± 0.005) 2 1 3 4 5.

Seme LAB

📥 Download Datasheet

Datasheet Details

Part number	2N2920DCSM
Manufacturer	Seme LAB
File Size	31.57 KB
Description	DUAL NPN TRANSISTORS
Datasheet	2N2920DCSM Datasheet
Additional preview pages of the 2N2920DCSM datasheet.

📁 Similar Datasheet

2N2920 - Dual Transistor (Solid State)
2N2920 - Dual NPN Transistor (NES)
2N2920 - DUAL AMPLIFIER TRANSISTOR (Motorola)
2N2920 - DUAL NPN TRANSISTORS (Central Semiconductor)
2N2920 - NPN Dual Silicon Transistor (VPT)
2N2920A - Dual Transistor (Solid State)
2N2920A - DUAL NPN TRANSISTORS (Central Semiconductor)
2N2920A - Si NPN Lo-Power BJT (New Jersey Semi-Conductor)
2N2920AHR - Hi-Rel NPN dual matched bipolar transistor (STMicroelectronics)
2N2920L - NPN Dual Silicon Transistor (VPT)

Other Datasheets by Seme LAB

2N2920 - DUAL NPN PLANAR TRANSISTORS
2N2904 - GENERAL PURPOSE PNP TRANSISTOR
2N2904A - Bipolar PNP Device
2N2905A - HIGH SPEED MEDIUM POWER PNP SWITCHING TRANSISTOR
2N2905L - Bipolar PNP Device
2N2907 - Bipolar PNP Device
2N2907A - HIGH SPEED MEDIUM POWER PNP TRANSISTOR
2N2907ACSM - PNP SWITCHING TRANSISTOR

Full PDF Text Transcription

Click to expand full text

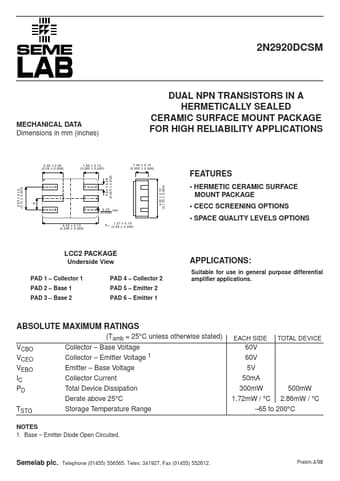

2N2920DCSM MECHANICAL DATA Dimensions in mm (inches) DUAL NPN TRANSISTORS IN A HERMETICALLY SEALED CERAMIC SURFACE MOUNT PACKAGE FOR HIGH RELIABILITY APPLICATIONS 2.29 ± 0.20 (0.09 ± 0.008) 1.65 ± 0.13 (0.065 ± 0.005) 0.64 ± 0.08 (0.025 ± 0.003) 1.40 ± 0.15 (0.055 ± 0.006) FEATURES 4.32 ± 0.13 (0.170 ± 0.005) 2.54 ± 0.13 (0.10 ± 0.005) 2 1 3 4 5 • HERMETIC CERAMIC SURFACE MOUNT PACKAGE • CECC SCREENING OPTIONS • SPACE QUALITY LEVELS OPTIONS A 6 0.23 rad. (0.009) 1.27 ± 0.13 (0.05 ± 0.005) 6.22 ± 0.13 (0.245 ± 0.005) A= LCC2 PACKAGE Underside View PAD 1 – Collector 1 PAD 2 – Base 1 PAD 3 – Base 2 PAD 4 – Collector 2 PAD 5 – Emitter 2 PAD 6 – Emitter 1 APPLICATIONS: Suitable for use in general purpose differential amplifier applications.
