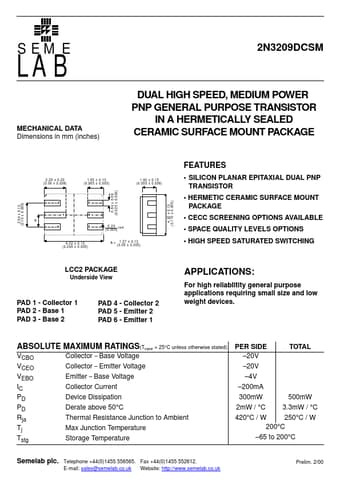

2N3209DCSM Datasheet, TRANSISTOR, Seme LAB

2N3209DCSM Features

• Transistor 2.29 ± 0.20 (0.09 ± 0.008) 1.65 ± 0.13 (0.065 ± 0.005) 0.64 ± 0.08 (0.025 ± 0.003) 1.40 ± 0.15 (0.055 ± 0.006)
• SILICON PLANAR EPITAXIAL DUAL PNP TRANSISTOR 4.32 ± 0.13 (0.

PDF File Details

Part number:

2N3209DCSM

Manufacturer:

Seme LAB

File Size:

16.35kb

Download:

📄 Datasheet

Description:

Pnp general purpose transistor.

2N3209DCSM Application

• Applications For high reliablitity general purpose applications requiring small size and low weight devices. PAD 1 - Collector 1 PAD 2 - Base 1 PA
