HRP120N10K Datasheet - SemiHow

HRP120N10K 100V N-Channel Trench MOSFET

HRP120N10K Features

*  Originative New Design  Superior Avalanche Rugged Technology  Excellent Switching Characteristics  Unrivalled Gate Charge : 65 nC (Typ.)  Extended Safe Operating Area  Lower RDS(ON) : 10 mΩ (Typ.) @VGS=10V  100% Avalanche Tested March 2015 BVDSS = 100 V RDS(on) typ = 10 mΩ ID = 73 A TO-220

HRP120N10K-SemiHow.pdf

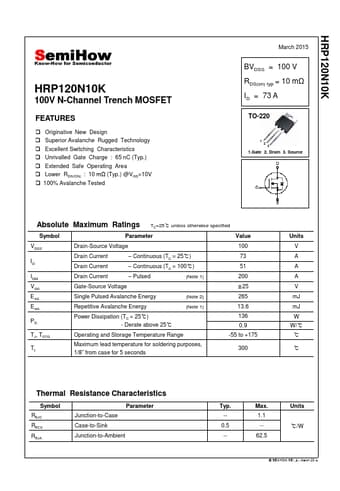

Preview of HRP120N10K PDF
HRP120N10K Datasheet Preview Page 2 HRP120N10K Datasheet Preview Page 3

Datasheet Details

Part number:

HRP120N10K

Manufacturer:

SemiHow

File Size:

1.01 MB

Description:

100v n-channel trench mosfet.
