HTP8A80H Datasheet - SemiHow

TRIAC

HTP8A80H Features

*  Repetitive Peak Off-State Voltage : 600V/800V  R.M.S On

* State Current (IT(RMS) = 8A)  Gate Trigger Current : 35mA  High commutation capability. VDRM = 600V/800V IT(RMS) = 8 A ITSM = 84 A IGT = 35mA Symbol TO-220 Applications General purpose of AC switching, heating control, motor cont

HTP8A80H General Description

Semihow’s standard TRIAC product is a glass passivated device, has a high commutative performance, stable gate triggering level to temperature and high off state voltage. It is generally suitable for power and phase control in ac application Absolute Maximum Ratings Symbol Parameter VDRM VRRM IT.

HTP8A80H Datasheet (385.98 KB)

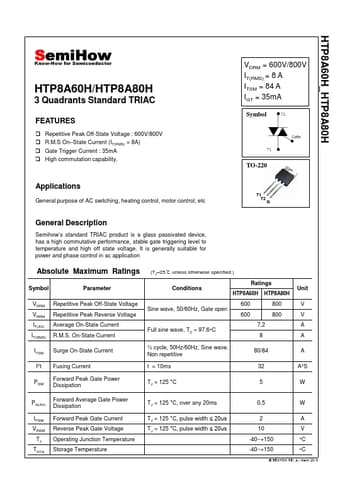

HTP8A80H Datasheet Preview — Preview of HTP8A80H PDF

Datasheet Details

Part number:

HTP8A80H

Manufacturer:

SemiHow

File Size:

385.98 KB

Description:

Triac.
