EDGE211 Datasheet - Semtech Corporation

Dual Pin Electronics Driver

EDGE211 Features

* 100 MHz Operation 12V I/O Range Programmable Output Levels Flex In digital Inputs (Technology Independent) Three Level Driver Extremely Low Leakage Currents (~0 nA) Small Footprint (32 Pin, 7 mm X 7 mm, TQFP Package) Applications

EDGE211 General Description

The Edge211 is a dual trinary driver manufactured in a wide voltage CMOS process. It is designed for automatic test equipment and instrumentation where cost, functional density, and power are all at a premium. Each tristatable driver is capable of generating 3 levels one for a logic high, one for a .

EDGE211 Datasheet (122.43 KB)

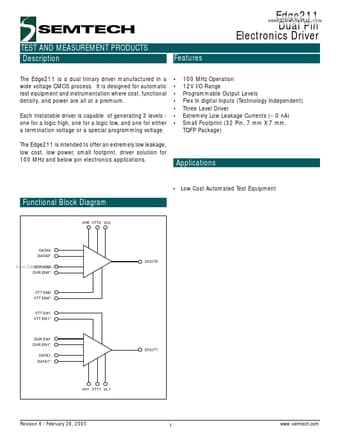

EDGE211 Datasheet Preview — Preview of EDGE211 PDF

Datasheet Details

Part number:

EDGE211

Manufacturer:

Semtech Corporation

File Size:

122.43 KB

Description:

Dual pin electronics driver.
