EDGE6435, (EDGE6435 / EDGE6436) Per-Pin Electronics Companion DAC

Edge6435/6436 Per-Pin Electronics Companion DAC www.DataSheet4U.com TEST AND MEASUREMENT PRODUCTS .
The Edge6435/6436 is a low-cost, 40-channel, monolithic ATE level DAC solution manufactured in a wide-voltage bi-CMOS process.

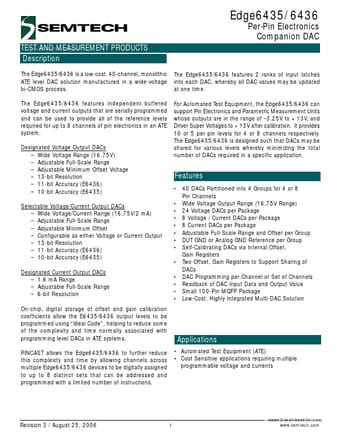

datasheet Preview Page 1 from Datasheet4u.com

EDGE6435_SemtechCorporation.pdf

EDGE6435 Datasheet Preview — Preview of EDGE6435 PDF

Datasheet Details

Part number:

EDGE6435

Manufacturer:

Semtech Corporation

File Size:

346.28 KB

Description:

(EDGE6435 / EDGE6436) Per-Pin Electronics Companion DAC

Features

* independent buffered voltage and current outputs that are serially programmed and can be used to provide all of the reference levels required for up to 8 channels of pin electronics in an ATE system. Designated Voltage Output DACs
* Wide Voltage Range (16.75V)
* Adjustable Full-Scale

Applications

* Automated Test Equipment (ATE)
* Cost Sensitive applications requiring multiple programmable voltage and currents Revision 3 / August 25, 2006 1 www. semtech. com Edge6435/6436 TEST AND MEASUREMENT PRODUCTS www. DataSheet4U. com Functional Block Diagram SDIN CLKIN 4 DAC 0 2 2 2
