Part number: Edge118
Manufacturer: Semtech
File Size: 79.28KB
Download: 📄 Datasheet
Description: Low Skew Clock Spreader
* Low Timing Error vs. Duty Cycle & Frequency
* Low Channel to Channel Skew
* Small Footprint (64 MQFP Package, 14 mm X 14 mm Body)

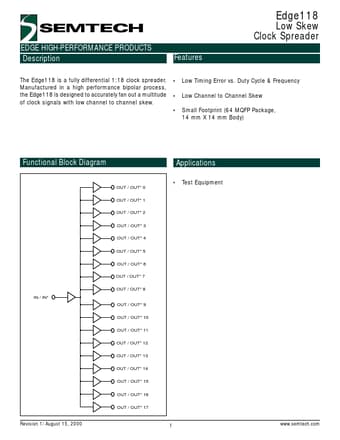

Functional Block Diagram
.
* Test Equipment
Revision 1/August 15, 2000
1
www.semtech.com
Edge118
EDGE HIGH-PERFORMANCE PRODUCTS PIN Descrip.
The Edge118 is a fully differential 1:18 clock spreader. Manufactured in a high performance bipolar process, the Edge118 is designed to accurately fan out a multitude of clock signals with low channel to channel skew.
Features
* Low Timing Error.
