EDGE4707B - Quad Channel Per-Pin Precision Measurement

EDGE4707B Description

Edge4707B Quad Channel Per-Pin Precision Measurement Unit TEST AND MEASUREMENT PRODUCTS .
The Edge4707B is a precision measurement unit designed for automatic test equipment and instrumentation.

EDGE4707B Features

* a PMU that can force or measure voltage over a 15V I/O range, and supports 4 current ranges: 2 µA, 200 µA, 20 µA, and 2 mA. Each channel of the Edge4707B features an on-board window comparator that provides two bits of information: DUT too high and DUT too low. There is also a monitor function which

EDGE4707B Applications

* Automated Test Equipment - Memory Testers - VLSI Testers - Mixed Signal Tester SENSE DUTLTH DUTGTL IVMON DISABLE CHANNEL 2 VINP IVIN 1KΩ∗ FV / FI
* MI / MV
* IVMAX IVMIN DISABLE CHANNEL 3 VINP IVIN 1KΩ∗ FV / FI
* MI / MV
* IVMAX IVMIN DISABLE
* Typical values COMPARATORS

📥 Download Datasheet

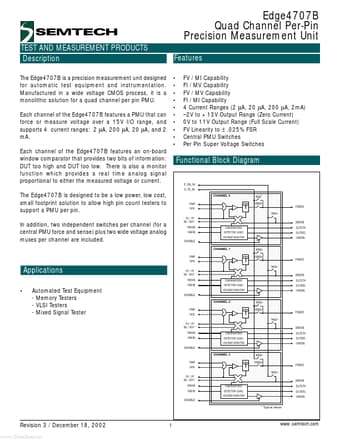

Preview of EDGE4707B PDF
