Edge649 Datasheet - Semtech

Octal Pin Electronics Driver/Receiver

Edge649 Features

* 50 MHz Operation 11 V DUT I/O Range Programmable Output Levels Programmable Input Thresholds Per Pin Flexibility High Integration Levels 615 mW Quiescent Power Dissipation Edge648 Compatible Functional Block Diagram VH

Edge649 General Description

The Edge649 is an octal pin electronics driver and receiver combination fabricated in a high- performance CMOS process. It is designed for automatic test equipment and instrumentation where cost, functional density, and power are all at a premium. The Edge649 incorporates eight channels of programma.

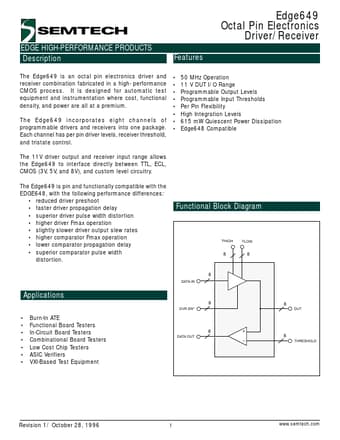

Edge649 Datasheet (100.38 KB)

Edge649 Datasheet Preview — Preview of Edge649 PDF

Datasheet Details

Part number:

Edge649

Manufacturer:

Semtech

File Size:

100.38 KB

Description:

Octal pin electronics driver/receiver.
