Part number: Edge646
Manufacturer: Semtech
File Size: 135.88KB
Download: 📄 Datasheet
Description: Pin Electronics Driver/ Window Comparator/ and Switch Matrix
*
*
*
*
*
*
* 100 MHz Operation 12V I/O Range Programmable Output Levels Flex In digital Inputs (Technology Independent) Three Level Driver Ex.
* Low Cost Automatic Test Equipment

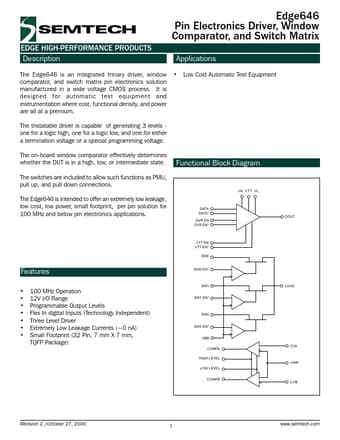

Functional Block Diagram
The Edge646 is intended to offer an extremely low lea.
The Edge646 is an integrated trinary driver, window comparator, and switch matrix pin electronics solution manufactured in a wide voltage CMOS process. It is designed for automatic test equipment and instrumentation where cost, functional density, an.
