SX8722 Datasheet - Semtech Corporation

High gain acquisition

SX8722 Features

* 16 + 10 bits differential acquisition Preamplifier programmable gain up to 1000 Sensor offset compensation up to 15 times full scale of input signal 4 differential or 7 single ended signal inputs 2 differential reference inputs www.DataSheet4U

SX8722 General Description

The main function of the SX8722 is to acquire signal from Wheatstone bridges or single ended sensors. The input can be a pressure sensor, a GMR or AMR magnetic sensor, a chemical sensor, a thermistor or a mix of several of these sensors. The SX8722 Sensor interface is totally configurable through an.

SX8722 Datasheet (825.86 KB)

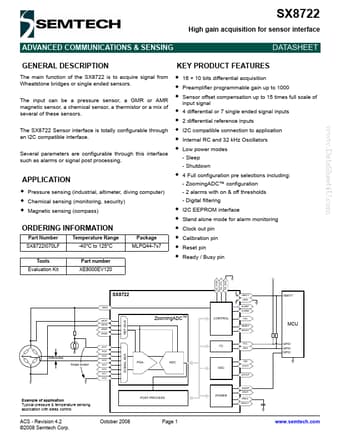

SX8722 Datasheet Preview — Preview of SX8722 PDF

Datasheet Details

Part number:

SX8722

Manufacturer:

Semtech Corporation

File Size:

825.86 KB

Description:

High gain acquisition.
