SX8725 Datasheet - Semtech

ZoomingADC

SX8725 Features

* Up to 16-bit differential data acquisition Programmable gain: (1/12 to 1000) Sensor offset compensation up to 15 times full scale of input signal 1 differential or 2 single-ended signal inputs Program

SX8725 General Description

The SX8725 is a data acquisition system based on Semtech’s low power ZoomingADC™ technology. It directly connects most types of miniature sensors with a general purpose microcontroller. With 1 differential input, it can adapt to multiple sensor systems. Its digital outputs are used to bias or reset .

SX8725 Datasheet (3.93 MB)

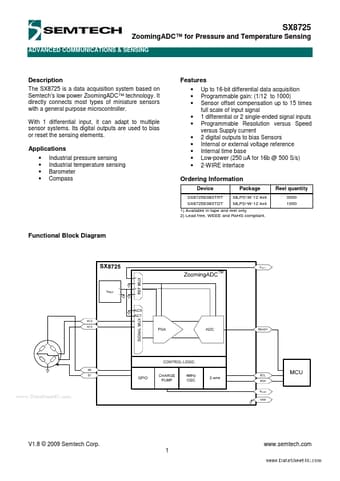

SX8725 Datasheet Preview — Preview of SX8725 PDF

Datasheet Details

Part number:

SX8725

Manufacturer:

Semtech

File Size:

3.93 MB

Description:

Zoomingadc.
