SX8725S Features

* Up to 16-bit differential data acquisition Programmable gain: (1/12 to 1000) Sensor offset compensation up to 15 times full scale of input signal 1 differential or 2 single-ended signal inputs Programmable Resolution versus Speed versus Supply current Digital outputs to bias Sensors Internal or exte

SX8725S General Description

The SX8725S is a data acquisition system based on Semtech's low power ZoomingADC™ technology. It directly connects most types of miniature sensors with a general purpose microcontroller. With 1 differential input, it can adapt to multiple sensor systems. Its digital outputs are used to bias or reset.

SX8725S Datasheet (1.68 MB)

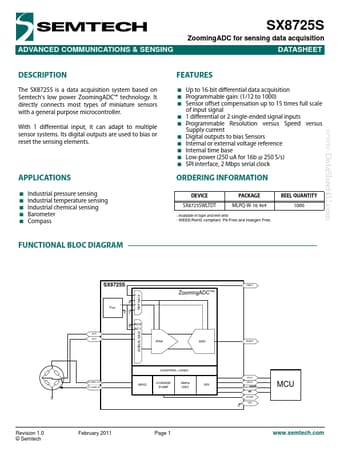

SX8725S Datasheet Preview — Preview of SX8725S PDF

Datasheet Details

Part number:

SX8725S

Manufacturer:

Semtech Corporation

File Size:

1.68 MB

Description:

Zoomingadc.
