SX8723 Datasheet - Semtech Corporation

ZoomingADC

SX8723 Features

* Up to 16-bit differential data acquisition

* Programmable gain: (1/12 to 1000)

* Sensor offset compensation up to 15 times full scale of input signal

* 2 differential or 4 single-ended signal inputs

* Programmable Resolution versus Speed versus Supply curren

SX8723 General Description

The SX8723 is a data acquisition system based on Semtech’s low power ZoomingADC™ technology. It directly connects most types of miniature sensors with a general purpose microcontroller. With 2 differential inputs, it can adapt to multiple sensor systems. Its digital outputs are used to bias or reset.

SX8723 Datasheet (3.86 MB)

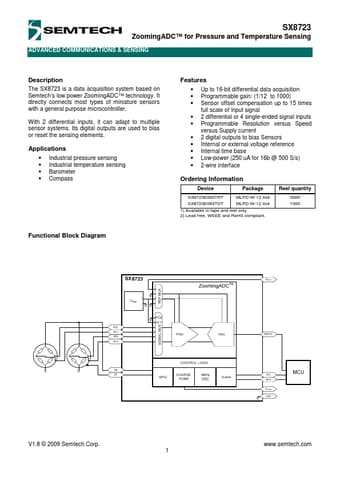

SX8723 Datasheet Preview — Preview of SX8723 PDF

Datasheet Details

Part number:

SX8723

Manufacturer:

Semtech Corporation

File Size:

3.86 MB

Description:

Zoomingadc.
