SX8724 Datasheet - Semtech Corporation

ZoomingADC

SX8724 Features

* Up to 16-bit differential data acquisition Programmable gain: (1/12 to 1000) Sensor offset compensation up to 15 times full scale of input signal 3 differential or 6 single-ended signal inputs Program

SX8724 General Description

The SX8724 is a data acquisition system based on Semtech’s low power ZoomingADC™ technology. It directly connects most types of miniature sensors with a general purpose microcontroller. With 3 differential inputs, it can adapt to multiple sensor systems. Its digital outputs are used to bias or reset.

SX8724 Datasheet (3.79 MB)

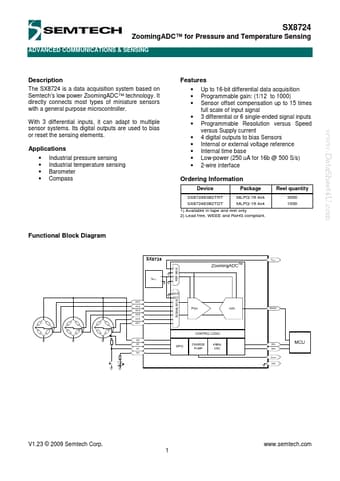

SX8724 Datasheet Preview — Preview of SX8724 PDF

Datasheet Details

Part number:

SX8724

Manufacturer:

Semtech Corporation

File Size:

3.79 MB

Description:

Zoomingadc.
