SX8723C Datasheet - Semtech Corporation

ZoomingADC

SX8723C Features

* Up to 16-bit differential data acquisition Programmable gain: (1/12 to 1000) Sensor offset compensation up to 15 times full scale of input signal 2 differential or 4 single-ended signal inputs Programmable Resolution versus Speed versus Supply current Digital outputs to bias Sensors Internal or exte

SX8723C General Description

The SX8723C is a data acquisition system based on Semtech's low power ZoomingADC™ technology. It directly connects most types of miniature sensors with a general purpose microcontroller. With 2 differential inputs, it can adapt to multiple sensor systems. Its digital outputs are used to bias or rese.

SX8723C Datasheet (1.69 MB)

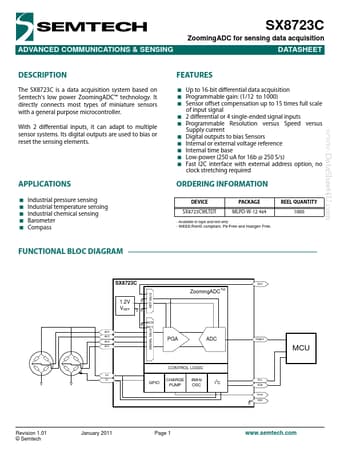

SX8723C Datasheet Preview — Preview of SX8723C PDF

Datasheet Details

Part number:

SX8723C

Manufacturer:

Semtech Corporation

File Size:

1.69 MB

Description:

Zoomingadc.
