HD60SB60 60A 600V-1200V Single Phase Glass Passivated Bridge Rectifier

HD60SB60 Description

HD60SB60 thru HD60SB120 60A,600V-1200V 60A,600V-1200V Single Phase Glass Passivated Bridge Rectifier * .

HD60SB60 Features

* Glass passivated chip
* Low reverse leakage current
* KEY PARAMETERS PARAMETER VALUE IF(AV) 60 UNIT A High surge current capability VRRM 600-1200 V
* UL # E249161 UL recognized file # E249161
* RoHS 2011/65/EU IFSM Package 550 A HD-SB Compliant to RoHS di

HD60SB60 Applications

* Household electric appliances
* Industrial power supply
* Switching mode power supply
* General purpose single phase bridge rectifier
* Mechanical Data
* ：HD-SB Case : HD-SB
* ： Polarity: Polarity symbols being marked on body
* ：8.0kgf. cm Mounting torque: 8.0kgf. cm ma

📥 Download Datasheet

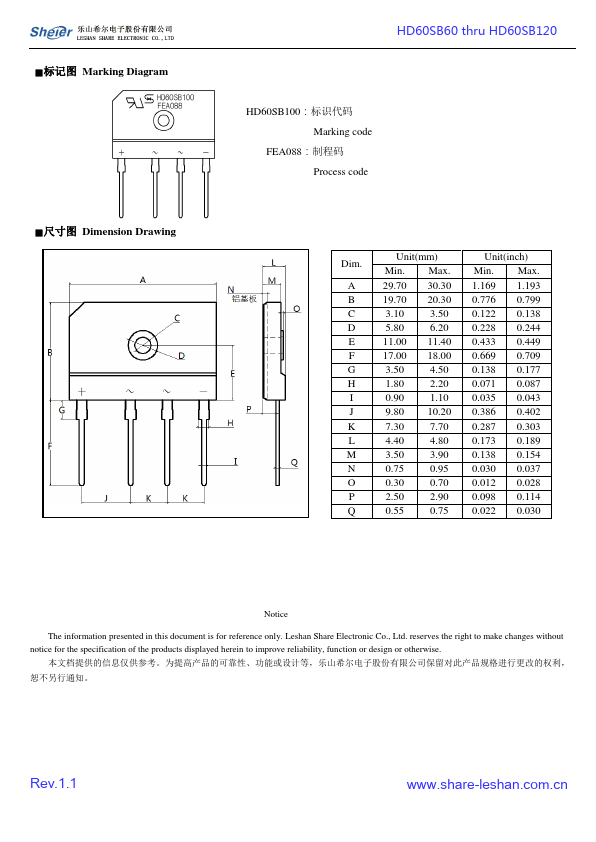

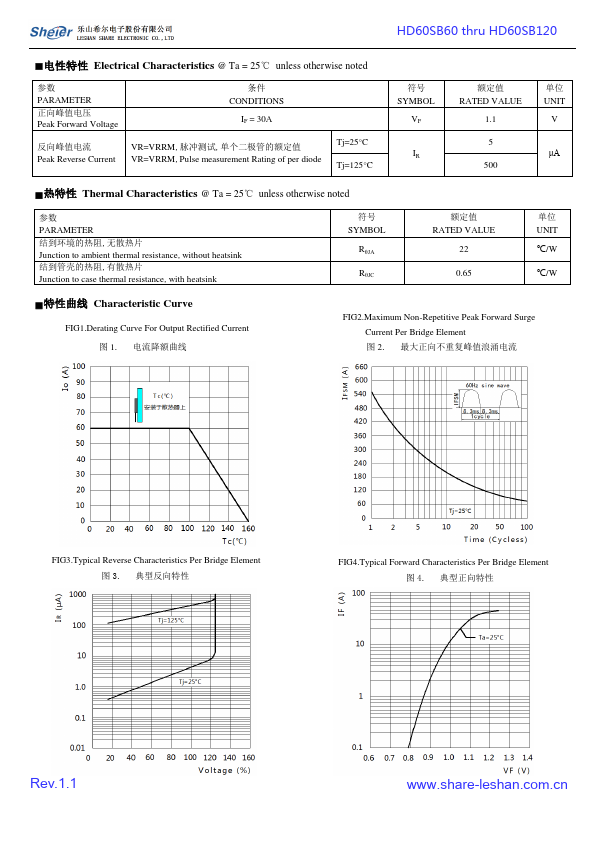

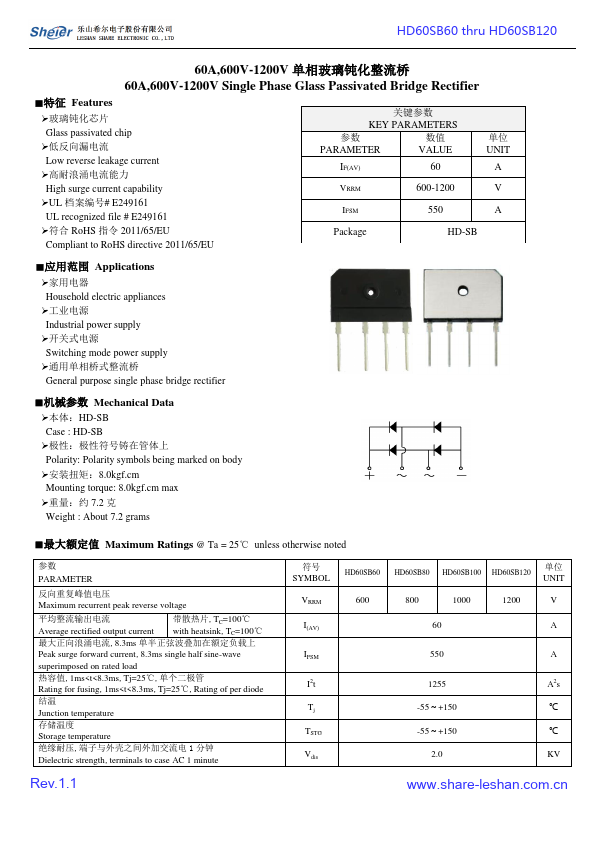

Preview of HD60SB60 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HD60SB60
Manufacturer
Sheier
File Size
470.77 KB
Datasheet
HD60SB60-Sheier.pdf
Description
60A 600V-1200V Single Phase Glass Passivated Bridge Rectifier
