2SA1877 Switching Power Transistor

SHINDENGEN Switching Power Transistor HSV Series 2SA1877 (TE5T8) -5A PNP OUTLINE DIMENSIONS Case : E-pack Unit : mm RATINGS Absolute Maximum Ratings Item Storage Temperature Junction Temperature Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current DC Collector Current Peak Base Current DC Base Current Peak Total Transistor Dissipation Symbol Tstg Tj VCBO VCEO VEBO IC ICP IB IBP PT Conditions Tc = 25℃ Ratings -55～150 150 -80 -80 -7 -5 -10 -1.

2SA1877 Datasheet (382.15 KB)

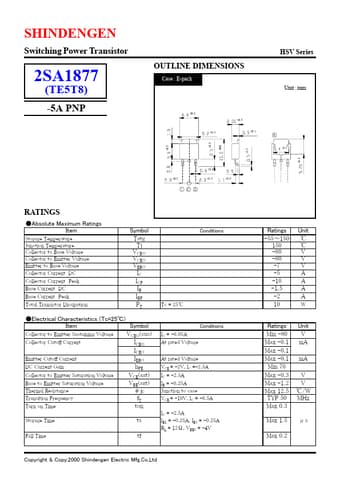

Preview of 2SA1877 PDF

Datasheet Details

Part number:

2SA1877

Manufacturer:

Shindengen Electric Mfg.Co.Ltd

File Size:

382.15 KB

Description:

Switching power transistor.
