2SA1873 Datasheet - Toshiba Semiconductor

2SA1873 Silicon PNP Transistor

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1873 Audio Frequency General Purpose Amplifier Applications Small package (dual type) High voltage and high current: VCEO = 50 V, IC = 150 mA (max) High hFE: hFE = 120 to 400 Excellent hFE linearity: hFE (IC = 0.1 mA)/hFE (IC = 2 mA) = 0.95 (typ.) Complementary to 2SC4944 2SA1873 Unit: mm Absolute Maximum Ratings (Ta = 25°C) (Q1, Q2 common) Characteristics Collector.

2SA1873_ToshibaSemiconductor.pdf

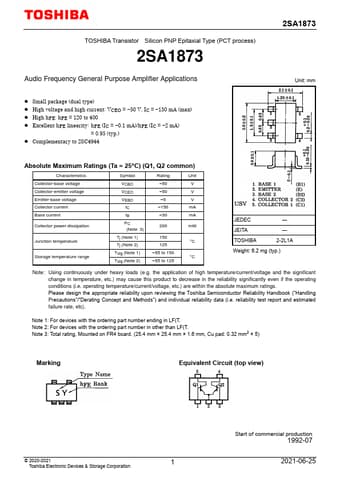

Preview of 2SA1873 PDF
2SA1873 Datasheet Preview Page 2 2SA1873 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1873

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

570.01 KB

Description:

Silicon pnp transistor.
