BUZ100SL Datasheet - Siemens Semiconductor Group

BUZ100SL Power Transistor

BUZ 100 SL SPP70N05L SIPMOS ® Power Transistor N channel Enhancement mode Logic Level Avalanche-rated dv /dt rated 175°C operating temperature also in SMD available Pin 1 Pin 2 Pin 3 G D S Type VDS 55 V ID 70 A RDS(on) 0.018 Ω Package Ordering Code BUZ 100 SL TO-220 AB Q67040-S4000-A2 Maximum Ratings Parameter Symbol Values Unit Continuous drain current TC = 25 °C TC = 100 °C ID A 70 50 Pulsed drain current .

BUZ100SL_SiemensSemiconductorGroup.pdf

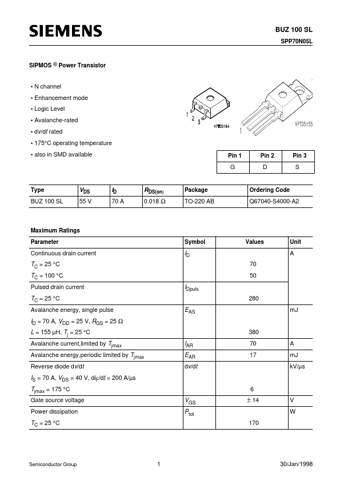

Preview of BUZ100SL PDF
BUZ100SL Datasheet Preview Page 2 BUZ100SL Datasheet Preview Page 3

Datasheet Details

Part number:

BUZ100SL

Manufacturer:

Siemens Semiconductor Group

File Size:

123.26 KB

Description:

Power transistor.
