Preliminary data

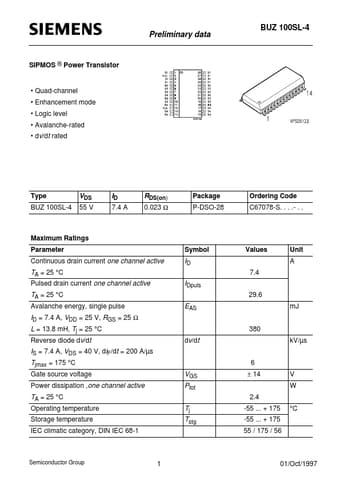

BUZ 100SL-4
SIPMOS ® Power Transistor
• Quad-channel • Enhancement mode • Logic level • Avalanche-rated • dv/dt rated
Type BUZ 100SL-4
VDS
55 V
ID
7.4 A
RDS(on)
0.023 Ω
Package P-DSO-28
Ordering Code C67078-S. . . .- . .
Maximum Ratings Parameter Continuous drain current one channel active Symbol Values 7.4 Unit A
ID IDpuls
29.6
TA = 25 °C
Pulsed drain current one channel active
TA = 25 °C
Avalanche energy, single pulse
EAS
380 dv/dt 6
mJ
ID = 7.4 A, VDD = 25 V, RGS = 25 Ω L = 13.8 mH, Tj = 25 °C
Reverse diode dv/dt kV/µs
IS = 7.4 A, VDS = 40 V, diF/dt = 200 A/µs Tjmax = 175 °C
Gate source voltage Power dissipation ,one channel active
VGS Ptot
± 14 2.
