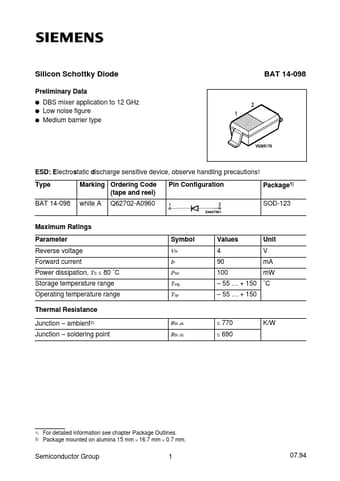

Silicon Schottky Diode
Preliminary Data DBS mixer application to 12 GHz q Low noise figure q Medium barrier type
q
BAT 14-098
ESD: Electrostatic discharge sensitive device, observe handling precautions! Type BAT 14-098 Marking Ordering Code (tape and reel) white A Q62702-A0960 Pin Configuration Package1) SOD-123
Maximum Ratings Parameter Reverse voltage Forward current Power dissipation, TS ≤ 80 ˚C Storage temperature range Operating temperature range Thermal Resistance Junction – ambient2) Junction – soldering point Rth JA Rth JS
≤ ≤
Symbol VR IF Ptot Tstg Top
Values 4 90 100 – 55 … + 150
Unit V mA mW
– 55 … + 150 ˚C
770 690
K/W
1) 2)
For detailed information see chapter Package Outlines. Package mounted on alumina 15 mm × 16.7 mm × 0.7 mm.
Semiconductor Group
1
07.
