Q62702-A1006 - Silicon Crossover Ring Quad Schottky Diode (High barrier diode for double balanced mixers/ phase detectors and modulators)

Datasheet Summary

Features

  • High barrier diode for double balanced mixers, phase detectors and modulators ESD: ElectroStatic Discharge sensitive device, observe handling precautions! Type BAT 114-099R Marking 14s Ordering Code (taped) Q62702-A1006 Pin Configuration Package1) SOT-143 1) Dimensions see chapter Package Outlines Maximum Ratings (per diode) Parameter Forward current Operation temperature Storage temperature Power dissipation, TS ≤ 70 °C Symbol Limit Values 90.
  • 55 to + 150.
  • 55 to.

📥 Download Datasheet

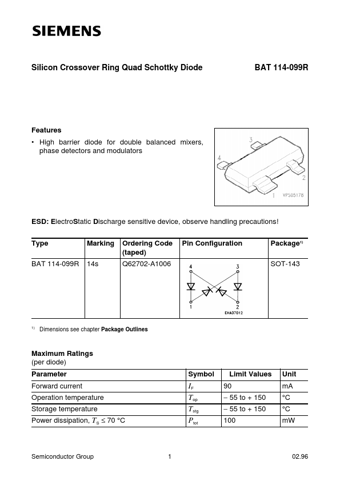

Datasheet preview – Q62702-A1006

Datasheet Details

Part number Q62702-A1006
Manufacturer Siemens Semiconductor Group
File Size 46.93 KB
Description Silicon Crossover Ring Quad Schottky Diode (High barrier diode for double balanced mixers/ phase detectors and modulators)
Datasheet download datasheet Q62702-A1006 Datasheet
Additional preview pages of the Q62702-A1006 datasheet.

📁 Similar Datasheet

  • Q62702P1137 - Infra-red Emitter 5mm (Siemens)
  • Q62702P1759 - Laser Diode (Osram)
  • Q62705-K110 - Silicon Spreading Resistance Temperature Sensor (Siemens Semiconductor)
  • Q62705-K111 - Silicon Spreading Resistance Temperature Sensor (Siemens Semiconductor)
Other Datasheets by Siemens Semiconductor Group
  • Q62702-A1004 - Silicon Schottky Diode (Low barrier diode for mixer and detectors up to GHz frequencies)
  • Q62702-A1010 - Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and swirches Freqency range above 1 MHz)
  • Q62702-A1017 - Silicon Dual Schottky Diode (High barrier diode for balanced mixers/ phase detectors and modulators)
  • Q62702-A1025 - Silicon PIN Diode (PIN diode for high speed switching of RF signals Low forward resistance Very low capacitance For frequencies up to 3 GHz)
  • Q62702-A1028 - Silicon Schottky Diode (Low barrier diode for detectors up to GHz frequencies)
  • Q62702-A1028 - Silicon Schottky Diode (Low Barrier diode for detectors up to GHz frequencies)
  • Q62702-A1030 - Silicon Switching Diode Array (For high speed switching applications Common cathode)
  • Q62702-A1031 - Silicon Switching Diode Array (For high speed switching applications Common anode)

Full PDF Text Transcription

Click to expand full text
Silicon Crossover Ring Quad Schottky Diode BAT 114-099R Features • High barrier diode for double balanced mixers, phase detectors and modulators ESD: ElectroStatic Discharge sensitive device, observe handling precautions! Type BAT 114-099R Marking 14s Ordering Code (taped) Q62702-A1006 Pin Configuration Package1) SOT-143 1) Dimensions see chapter Package Outlines Maximum Ratings (per diode) Parameter Forward current Operation temperature Storage temperature Power dissipation, TS ≤ 70 °C Symbol Limit Values 90 − 55 to + 150 − 55 to + 150 100 Unit mA °C °C mW IF Top Tstg Ptot Semiconductor Group 1 02.
