Q62702-A1010 Datasheet - Siemens Semiconductor Group

Q62702-A1010 Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and swirches Freqency range above 1 MHz)

BAR 64 Silicon PIN Diode l High voltage current controlled l RF resistor for RF attenuator and swirches l Freqency range above 1 MHz l Low resistance and short carrier lifetime l For frequencies up to 3 GHz Type BAR 64 BAR 64-04 BAR 64-05 BAR 64-06 Marking POs PPs PRs PSs Ordering code (tape and reel) Q62702-A1041 Q62702-A1010 Q62702-A1042 Q62702-A1043 Pin configuration Package 1 2 3 A C SOT-23 A C C/A A A C/C C C A/A 1) Maximum ratings per diode Parameter Reverse voltage Forward current Tota.

Q62702-A1010 Datasheet (89.49 KB)

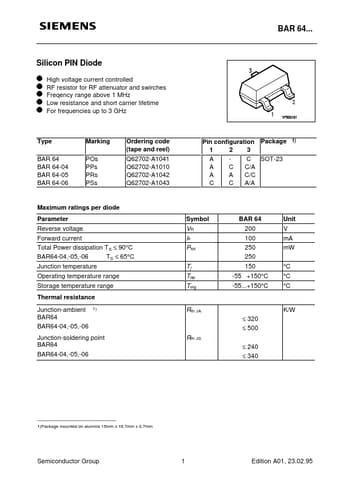

Q62702-A1010 Datasheet Preview — Preview of Q62702-A1010 PDF

Datasheet Details

Part number:

Q62702-A1010

Manufacturer:

Siemens Semiconductor Group

File Size:

89.49 KB

Description:

Silicon pin diode (high voltage current controlled rf resistor for rf attenuator and swirches freqency range above 1 mhz).
