Q62702-A1030 Silicon Switching Diode Array (For high speed switching applications Common cathode)

BAV 70W Silicon Switching Diode Array For high speed switching applications Common cathode Type BAV 70W Marking Ordering Code A4s Q62702-A1030 Pin Configuration 1 = A1 2 = A2 Package 3 = C1/C2 SOT-323 Maximum Ratings per Diode Parameter Diode reverse voltage Peak reverse voltage Forward current Surge forward current, t = 1 µs Total Power dissipation Symbol Values 70 70 200 4.5 250 mA A mW 150 - 65 + 150 ≤ 460 ≤ 190 °C Unit V VR VRM IF IFS Ptot Tj Tstg RthJA RthJS TS =.

Q62702-A1030_SiemensSemiconductorGroup.pdf

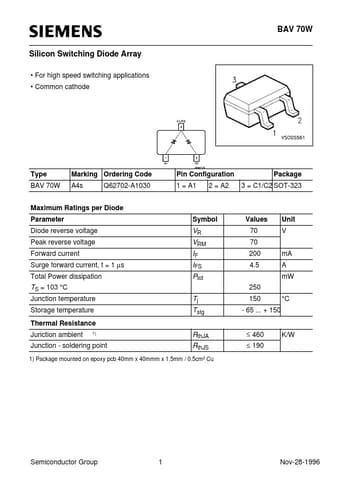

Preview of Q62702-A1030 PDF
Q62702-A1030 Datasheet Preview Page 2 Q62702-A1030 Datasheet Preview Page 3

Datasheet Details

Part number:

Q62702-A1030

Manufacturer:

Siemens Semiconductor Group

File Size:

70.44 KB

Description:

Silicon switching diode array (for high speed switching applications common cathode).
