Q62702-A1036 Datasheet - Siemens Semiconductor Group

Q62702-A1036 Silicon PIN Diode (PIN diode for high speed switching of RF signals Low forward resistance Very low capacitance For frequencies up to 3 GHz)

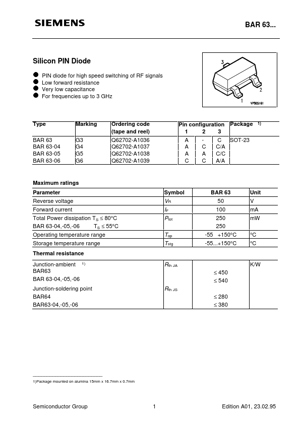

BAR 63 Silicon PIN Diode l PIN diode for high speed switching of RF signals l Low forward resistance l Very low capacitance l For frequencies up to 3 GHz Type BAR 63 BAR 63-04 BAR 63-05 BAR 63-06 Marking G3 G4 G5 G6 Ordering code (tape and reel) Q62702-A1036 Q62702-A1037 Q62702-A1038 Q62702-A1039 Pin configuration Package 1 2 3 A C SOT-23 A C C/A A A C/C C C A/A 1) Maximum ratings Parameter Reverse voltage Forward current Total Power dissipation TS ≤ 80°C BAR 63-04,-05,-06 TS ≤ 55°C Operating.

Q62702-A1036_SiemensSemiconductorGroup.pdf

Q62702-A1036 Datasheet Preview — Preview of Q62702-A1036 PDF

Datasheet Details

Part number:

Q62702-A1036

Manufacturer:

Siemens Semiconductor Group

File Size:

80.64 KB

Description:

Silicon pin diode (pin diode for high speed switching of rf signals low forward resistance very low capacitance for frequencies up to 3 ghz).
