Q62702-A1047 Preliminary data Silicon RF Switching Diode (Low loss/ low capacitance PIN-diode Band switch for TV-tuners)

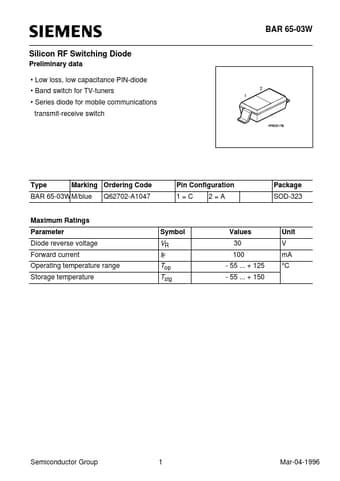

BAR 65-03W Silicon RF Switching Diode Preliminary data Low loss, low capacitance PIN-diode Band switch for TV-tuners Series diode for mobile communications transmit-receive switch Type Marking Ordering Code Q62702Q62702-A1047 Pin Configuration 1=C 2=A Package SOD-323 BAR 65-03WM/blue Maximum Ratings Parameter Diode reverse voltage Forward current Operating temperature range Storage temperature Symbol Values 30 100 - 55 + 125 - 55 + 150 Unit V mA °C VR IF To.
