Q62702-A1046 Datasheet - Siemens Semiconductor Group

Q62702-A1046 Silicon Schottky Diode (For mixer applications in the VHF/UHF range For high speed switching)

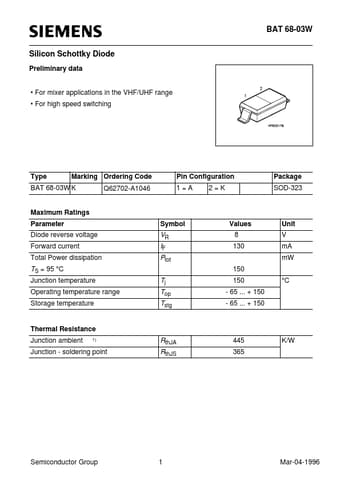

BAT 68-03W Silicon Schottky Diode Preliminary data For mixer applications in the VHF/UHF range For high speed switching Type Marking Ordering Code Q62702Q62702-A1046 Pin Configuration 1=A 2=K Package SOD-323 BAT 68-03W K Maximum Ratings Parameter Diode reverse voltage Forward current Total Power dissipation Symbol Values 8 130 150 Unit V mA mW 150 - 65 + 150 - 65 + 150 °C VR IF Ptot Tj Top Tstg TS = 95 °C Junction temperature Operating temperature range Storage tem.

Q62702-A1046_SiemensSemiconductorGroup.pdf

Q62702-A1046 Datasheet Preview — Preview of Q62702-A1046 PDF

Datasheet Details

Part number:

Q62702-A1046

Manufacturer:

Siemens Semiconductor Group

File Size:

92.17 KB

Description:

Silicon schottky diode (for mixer applications in the vhf/uhf range for high speed switching).
