Q62702-A1067 Datasheet - Siemens Semiconductor Group

Q62702-A1067 Silicon Schottky Diode

Silicon Schottky Diode q q q q BAS 40W General-purpose diodes for high-speed switching Circuit protection Voltage clamping High-level detecting and mixing Type Ordering Code (tape and reel) Q62702-A1065 Q62702-A1066 Q62702-A1067 Pin Configuration 1 2 3 A1 A1 C1 C1 A2 C2 Marking Package1) BAS 40-04W BAS 40-05W BAS 40-06W C1/A2 44s C1/C2 45s A1/A2 46s SOT-323 Maximum Ratings Parameter Reverse voltage Forward current Surge forward current, t ≤ 10 ms Total power dissipation TS ≤ 106 °C Ju.

Q62702-A1067_SiemensSemiconductorGroup.pdf

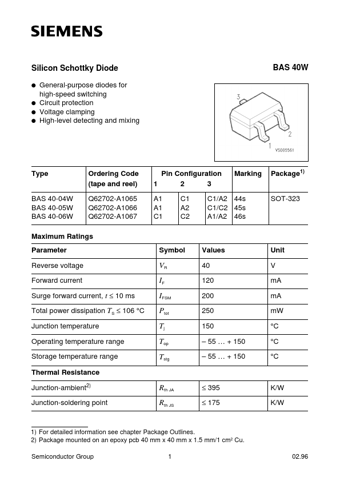

Q62702-A1067 Datasheet Preview — Preview of Q62702-A1067 PDF

Datasheet Details

Part number:

Q62702-A1067

Manufacturer:

Siemens Semiconductor Group

File Size:

141.08 KB

Description:

Silicon schottky diode.
