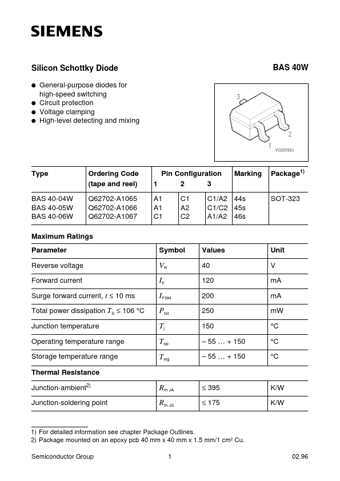

Silicon Schottky Diode
q q q q
BAS 40W
General-purpose diodes for high-speed switching Circuit protection Voltage clamping High-level detecting and mixing
Type
Ordering Code (tape and reel) Q62702-A1065 Q62702-A1066 Q62702-A1067
Pin Configuration 1 2 3 A1 A1 C1 C1 A2 C2
Marking
Package1)
BAS 40-04W BAS 40-05W BAS 40-06W
C1/A2 44s C1/C2 45s A1/A2 46s
SOT-323
Maximum Ratings Parameter Reverse voltage Forward current Surge forward current, t ≤ 10 ms Total power dissipation TS ≤ 106 °C Junction temperature Operating temperature range Storage temperature range Thermal Resistance Junction-ambient2) Junction-soldering point Symbol Values 40 120 200 250 150 – 55 … + 150 – 55 … + 150 Unit V mA mA mW °C °C °C
VR IF IFSM Ptot Tj Top Tstg
Rth JA Rth JS
≤ 395 ≤ 175
K/W K/W
1) For detail
Q62702-A1065 Datasheet
