Q62702-A1268 - Silicon PIN Diode (PIN diode for high speed switching of RF signal Low forward resistance Very low capacitance For frequencies up to 3 GHz)

📥 Download Datasheet

Datasheet preview – Q62702-A1268

Datasheet Details

Part number Q62702-A1268
Manufacturer Siemens Semiconductor Group
File Size 46.16 KB
Description Silicon PIN Diode (PIN diode for high speed switching of RF signal Low forward resistance Very low capacitance For frequencies up to 3 GHz)
Datasheet download datasheet Q62702-A1268 Datasheet
Additional preview pages of the Q62702-A1268 datasheet.

📁 Similar Datasheet

  • Q62702P1137 - Infra-red Emitter 5mm (Siemens)
  • Q62702P1759 - Laser Diode (Osram)
  • Q62705-K110 - Silicon Spreading Resistance Temperature Sensor (Siemens Semiconductor)
  • Q62705-K111 - Silicon Spreading Resistance Temperature Sensor (Siemens Semiconductor)
Other Datasheets by Siemens Semiconductor Group
  • Q62702-A1261 - Silicon PIN Diode (PIN diode for high speed switching of RF signal Low forward resistance Very low capacitance For frequencies up to 3 GHz)
  • Q62702-A1264 - Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz)
  • Q62702-A1265 - Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz)
  • Q62702-A1266 - Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz)
  • Q62702-A1267 - Silicon PIN Diode (PIN diode for high speed switching of RF signal Low forward resistance Very low capacitance For frequencies up to 3 GHz)
  • Q62702-A120 - Silicon PIN Diodes (RF switch RF attenuator for frequencies above 10 MHz)
  • Q62702-A1200 - Silicon Schottky Diodes (For mixer applications in the VHF / UHF range For high-speed switching applications)
  • Q62702-A1201 - NPN Silicon Switching Transistor Array

Full PDF Text Transcription

Click to expand full text

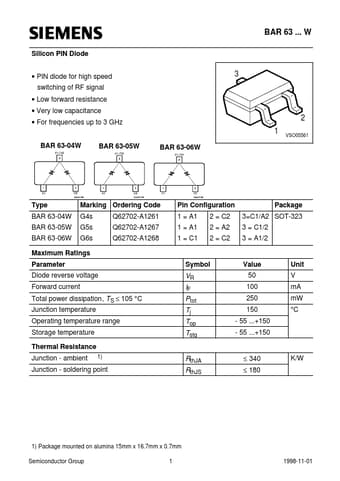

BAR 63 ... W Silicon PIN Diode • PIN diode for high speed switching of RF signal • Low forward resistance • Very low capacitance • For frequencies up to 3 GHz 3 2 1 VSO05561 BAR 63-04W BAR 63-05W BAR 63-06W Type BAR 63-04W BAR 63-05W BAR 63-06W Marking Ordering Code G4s G5s G6s Q62702-A1261 Q62702-A1267 Q62702-A1268 Pin Configuration 1 = A1 1 = A1 1 = C1 2 = C2 2 = A2 2 = C2 3 = C1/2 3 = A1/2 Package 3=C1/A2 SOT-323 Maximum Ratings Parameter Diode reverse voltage Forward current Total power dissipation, T S ≤ 105 °C Junction temperature Operating temperature range Storage temperature Thermal Resistance Junction - ambient 1) Symbol Value 50 100 250 150 - 55 ...+150 - 55 ...
