Q62702-A504 Silicon Dual Schottky Diode (DBS mixer applications to 12 GHz Low noise figure Low barrier type)

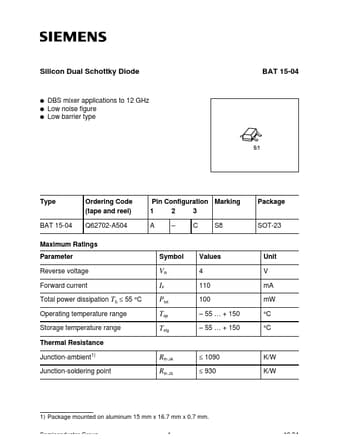

Silicon Dual Schottky Diode BAT 15-04 q q q DBS mixer applications to 12 GHz Low noise figure Low barrier type Type Ordering Code (tape and reel) Q62702-A504 Pin Configuration Marking 1 2 3 A C S8 Package BAT 15-04 SOT-23 Maximum Ratings Parameter Reverse voltage Forward current Total power dissipation TS ≤ 55 °C Operating temperature range Storage temperature range Thermal Resistance Junction-ambient1) Junction-soldering point Symbol Values 4 110 100 55 … + 150
