Q62702-C1893 Datasheet - Siemens Semiconductor Group

Q62702-C1893 - PNP Silicon AF Transistors (For general AF applications High current gain)

PNP Silicon AF Transistors BCW 67 BCW 68 For general AF applications q High current gain q Low collector-emitter saturation voltage q Complementary types: BCW 65, BCW 66 (NPN) q Type BCW 67 A BCW 67 B BCW 67 C BCW 68 F BCW 68 G BCW 68 H Marking DAs DBs DCs DFs DGs DHs Ordering Code (tape and reel) Q62702-C1560 Q62702-C1480 Q62702-C1681 Q62702-C1893 Q62702-C1322 Q62702-C1555 Pin Configuration 1 2 3 B E C Package1) SOT-23 1) For detailed information see chapter Package Outlines.

Semicond

Q62702-C1893_SiemensSemiconductorGroup.pdf

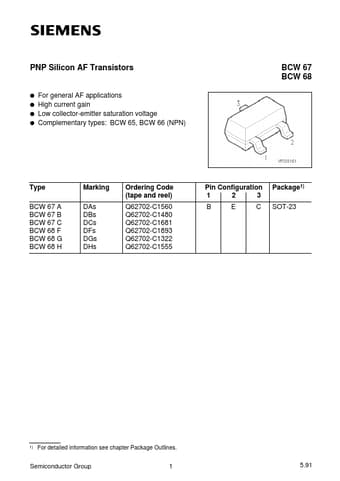

Preview of Q62702-C1893 PDF
Q62702-C1893 Datasheet Preview Page 2 Q62702-C1893 Datasheet Preview Page 3

Datasheet Details

Part number:

Q62702-C1893

Manufacturer:

Siemens Semiconductor Group

File Size:

134.68 KB

Description:

Pnp silicon af transistors (for general af applications high current gain).
