SGB10N60 Fast S-IGBT

📥 Download Datasheet Datasheet Preview Page 1

Description

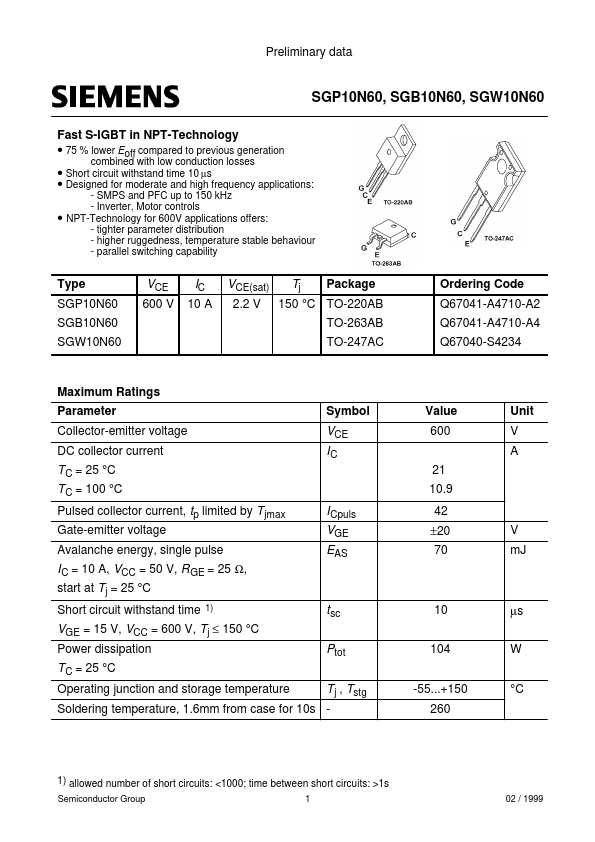

Preliminary data SGP10N60, SGB10N60, SGW10N60 Fast S-IGBT in NPT-Technology * 75 % lower Eoff compared to previous generation combined with .

📥 Download Datasheet

Preview of SGB10N60 PDF

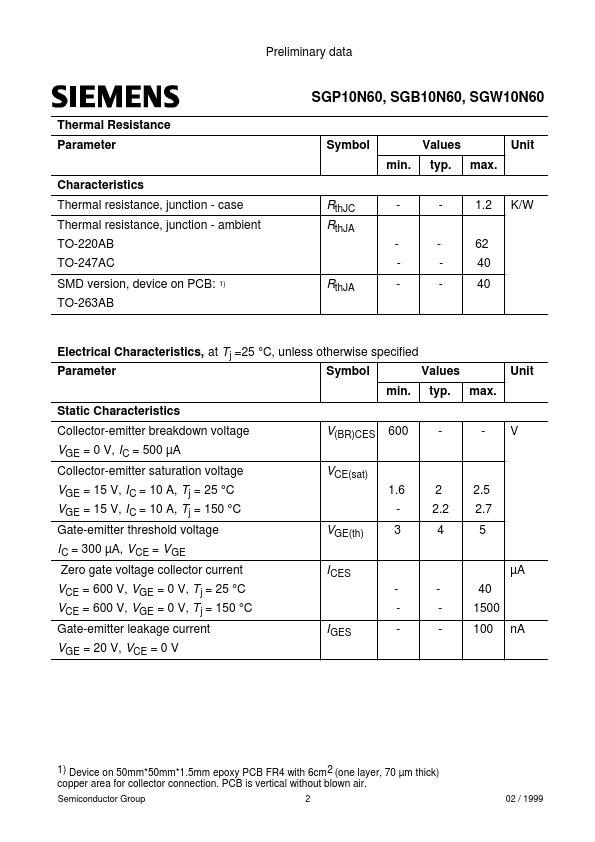

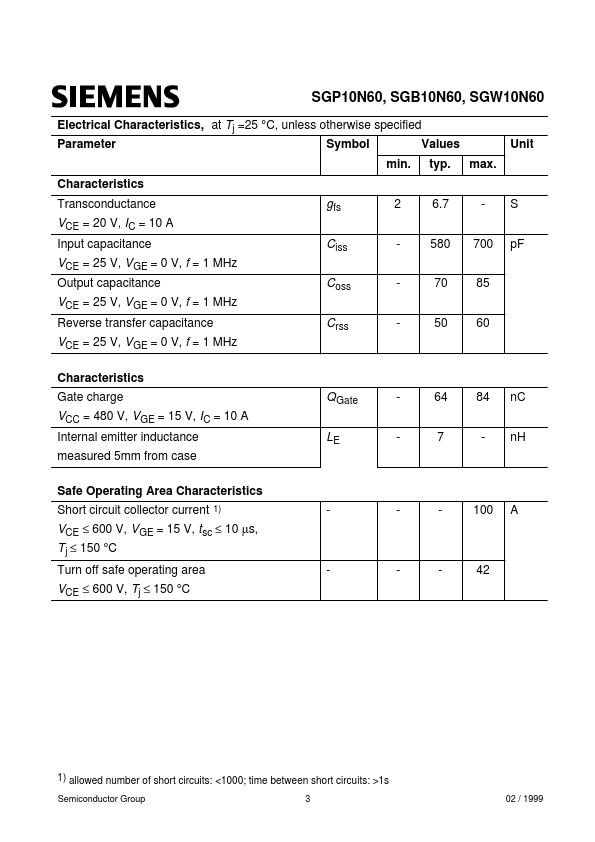

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SGB10N60
Manufacturer
Siemens
File Size
106.69 KB
Datasheet
SGB10N60-Siemens.pdf
Description
Fast S-IGBT

Applications

* - SMPS and PFC up to 150 kHz - Inverter, Motor controls
* NPT-Technology for 600V applications offers: - tighter parameter distribution - higher ruggedness, temperature stable behaviour - parallel switching capability Type SGP10N60 SGB10N60 SGW10N60 VCE 600 V IC 10 A VCE(sat) Tj Package
