SGT30T60SD1F 600V FIELD STOP IGBT

Silan Microelectronics

Description

Silan Microelectronics SGT30T60SD1F(FD)_Datasheet 30A, 600V FIELD STOP IGBT .
The SGT30T60SD1F(FD) field stop IGBT adopts Silan Field Stop III technology, features low conduction loss and switching loss, is applicable to UPS, SM.

📥 Download Datasheet

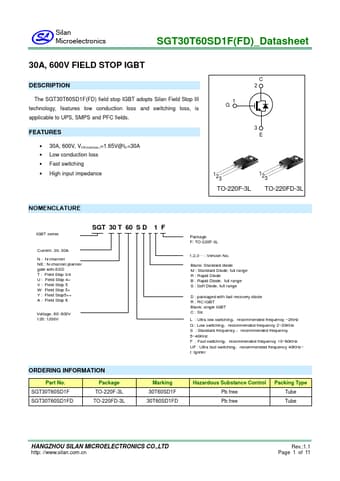

SGT30T60SD1F Datasheet Preview — Preview of SGT30T60SD1F PDF

Datasheet Specifications

Part number: SGT30T60SD1F
Manufacturer: Silan Microelectronics
File Size: 519.92 KB
Datasheet: SGT30T60SD1F-SilanMicroelectronics.pdf
Description: 600V FIELD STOP IGBT

Features

* low conduction loss and switching loss, is applicable to UPS, SMPS and PFC fields. FEATURES
* 30A, 600V, VCE(sat)(typ. )=1.65V@IC=30A
* Low conduction loss
* Fast switching
* High input impedance C 2 1 G 3 E 123 123 TO-220F-3L TO-220FD-3L NOMENCLATURE IGBT series SGT 30 T 60 S
