SGT30T60SD3PU 600V FIELD STOP IGBT

📥 Download Datasheet Datasheet Preview Page 1

Description

Silan Microelectronics SGT30T60SD3PU_Datasheet 30A, 600V FIELD STOP IGBT .
SGT30T60SD3PU adopts Field Stop III IGBT technology, offer the optimum performance for induction Heating, UPS, SMPS and PFC application.

📥 Download Datasheet

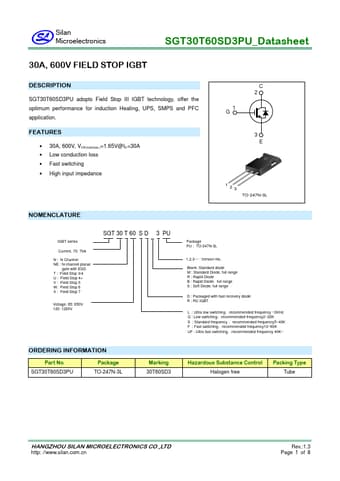

Preview of SGT30T60SD3PU PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 30A, 600V, VCE(sat)(typ. )=1.65V@IC=30A
* Low conduction loss
* Fast switching
* High input impedance C 2 1 G 3 E 123 TO-247N-3L NOMENCLATURE IGBT series Current, 70: 70A N : N Channel NE : N-channel planar gate with ESD T : Field Stop 3/4 U : Field Stop 4+ V : Field Stop 5 W: Fi
