SGT30T60SD1FD, SGT30T60SD1F Datasheet - Silan Microelectronics

SGT30T60SD1FD, SGT30T60SD1F, 600V FIELD STOP IGBT

Silan Microelectronics SGT30T60SD1F(FD)_Datasheet 30A, 600V FIELD STOP IGBT .
The SGT30T60SD1F(FD) field stop IGBT adopts Silan Field Stop III technology, features low conduction loss and switching loss, is applicable to UPS, SM.

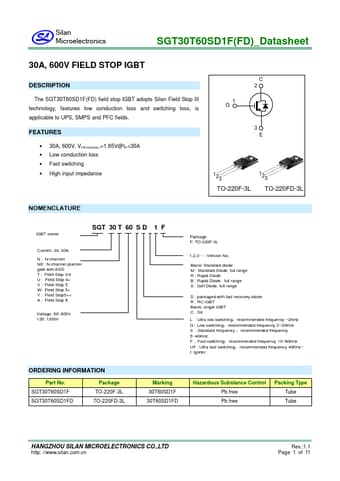

datasheet Preview Page 1 from Datasheet4u.com

SGT30T60SD1F-SilanMicroelectronics.pdf

SGT30T60SD1FD Datasheet Preview — This datasheet PDF includes multiple part numbers: SGT30T60SD1FD, SGT30T60SD1F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SGT30T60SD1FD, SGT30T60SD1F

Manufacturer:

Silan Microelectronics

File Size:

519.92 KB

Description:

600V FIELD STOP IGBT

Note:

This datasheet PDF includes multiple part numbers: SGT30T60SD1FD, SGT30T60SD1F.
Please refer to the document for exact specifications by model.

Features

* low conduction loss and switching loss, is applicable to UPS, SMPS and PFC fields. FEATURES
* 30A, 600V, VCE(sat)(typ. )=1.65V@IC=30A
* Low conduction loss
* Fast switching
* High input impedance C 2 1 G 3 E 123 123 TO-220F-3L TO-220FD-3L NOMENCLATURE IGBT series SGT 30 T 60 S
