SVF6N80AK, SVF6N80AD Datasheet - Silan Microelectronics

SVF6N80AK 800V N-CHANNEL MOSFET

SVF6N80AD(K)(F) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provid.

SVF6N80AK Features

* 6A,800V,RDS(on)(typ.)=1.9@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability ORDERING INFORMATION Part No. SVF6N80ADTR SVF6N80AK SVF6N80AF Package TO-252-2L TO-262-3L TO-220F-3L Marking 6N80AD SVF6N80AK SVF6N80AF 2 1 3 1.Gate 2.Drain 3.Source

SVF6N80AD-SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SVF6N80AK, SVF6N80AD. Please refer to the document for exact specifications by model.

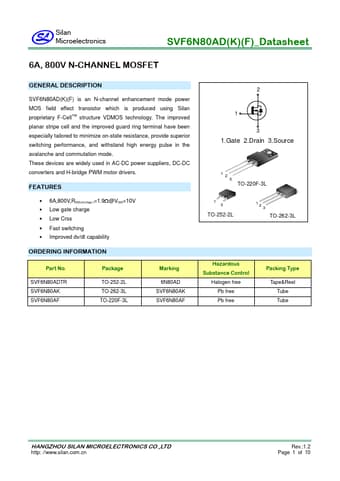

SVF6N80AK Datasheet Preview Page 2 SVF6N80AK Datasheet Preview Page 3

Datasheet Details

Part number:

SVF6N80AK, SVF6N80AD

Manufacturer:

Silan Microelectronics

File Size:

446.29 KB

Description:

800v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVF6N80AK, SVF6N80AD.
Please refer to the document for exact specifications by model.
