SVF6N80K, SVF6N80D Datasheet - Silan Microelectronics

SVF6N80K 800V N-CHANNEL MOSFET

SVF6N80D(K)(MJ) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switchin.

SVF6N80K Features

* 6A,800V, RDS(on)(typ.)=2.0@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 13 TO-252-2L 12 3 TO-262-3L ORDERING INFORMATION Part No. SVF6N80DTR SVF6N80K SVF6N80MJ Package TO-252-2L TO-262-3L TO-251J-3L Marking SVF6N80D SVF6N80K SVF6N80M

SVF6N80D-SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SVF6N80K, SVF6N80D. Please refer to the document for exact specifications by model.

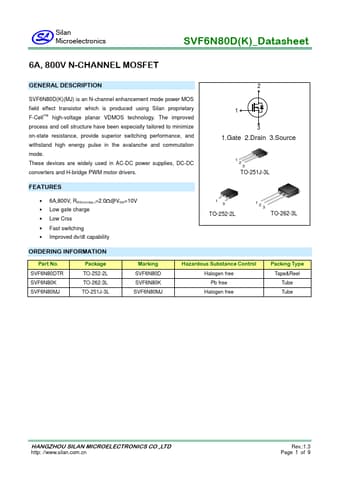

SVF6N80K Datasheet Preview Page 2 SVF6N80K Datasheet Preview Page 3

Datasheet Details

Part number:

SVF6N80K, SVF6N80D

Manufacturer:

Silan Microelectronics

File Size:

279.72 KB

Description:

800v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVF6N80K, SVF6N80D.
Please refer to the document for exact specifications by model.
