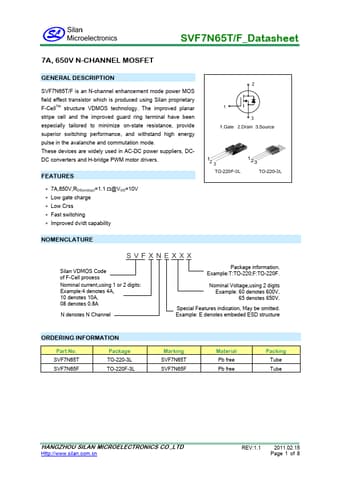

SVF7N65F 650V N-CHANNEL MOSFET

SVF7N65T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide sup.

SVF7N65F Features

* ∗ 7A,650V,RDS(on)(typ)=1.1 Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE Silan VDMOS Code of F-Cell process Nominal current,using 1 or 2 digits: Example:4 denotes 4A, 10 denotes 10A, 08 denotes 0.8A N denotes N Channel Package information. Exampl
