SVG083R6NAL5

80V N-CHANNEL MOSFET

SVG083R6NAL5 Features

* 138A, 80V, RDS(on)(typ.)=3.0m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Extreme dv/dt rated

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant KEY PERFORMANCE PARAMETERS Characteristics VDS VGS(th) RDS(on),max ID Qg.typ Ratings 80 2.0~

SVG083R6NAL5 General Description

SVG083R6NAL5 is N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance and high avalanche breakdown to.

SVG083R6NAL5 Datasheet (398.55 KB)

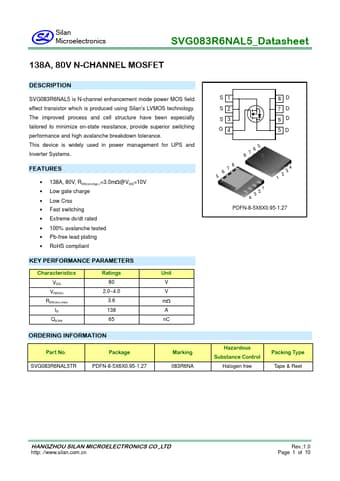

Preview of SVG083R6NAL5 PDF

Datasheet Details

Part number:

SVG083R6NAL5

Manufacturer:

Silan Microelectronics

File Size:

398.55 KB

Description:

80v n-channel mosfet.
