SVG-2066Z

Variable Gain Amp

SVG-2066Z Features

* both parallel or serial programmability, programmable power up states, latchable parallel control, 3V or 5V combatible logic and robust Class 1B ESD. The SVG2066 features configurable pin I/O’s for optimizing the part over application specific bands. 500MHz - 2200MHz 6-Bit Variable Gain Amp Pb Ro

SVG-2066Z General Description

Sirenza Microdevices’ SVG-2066 is an IC based 6-bit digital 31.5dB range attenuator cascaded with a linear class A amplifier in a low-cost surface-mountable 6x6 QFN plastic package. This product is specifically designed as a high linearity variable gain amplifier for infrastructure equipment that ca.

SVG-2066Z Datasheet (412.85 KB)

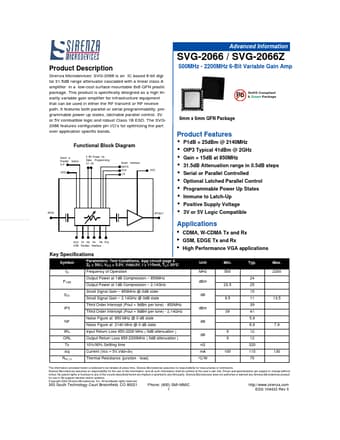

Preview of SVG-2066Z PDF

Datasheet Details

Part number:

SVG-2066Z

Manufacturer:

Sirenza Microdevices

File Size:

412.85 KB

Description:

Variable gain amp.
