SVG034R3NL3C-2LF 30V N-CHANNEL MOSFET

SVG034R3NL3C-2LF is N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance and high avalanche breakdow.

SVG034R3NL3C-2LF Features

* 75A, 30V, RDS(on)(typ.)=3.6m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Extreme dv/dt rated

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant KEY PERFORMANCE PARAMETERS Characteristics VDS VGS(th) RDS(on),max ID Qg.typ Ratings 30 1.2~2

SVG034R3NL3C-2LFTR-SilanSemiconductors_removed.pdf

This datasheet PDF includes multiple part numbers: SVG034R3NL3C-2LF, SVG034R3NL3C-2LFTR-SilanSemiconductors. Please refer to the document for exact specifications by model.

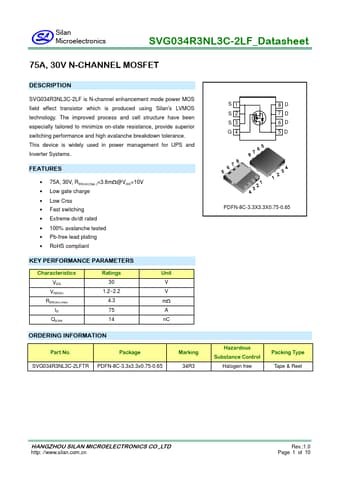

SVG034R3NL3C-2LF Datasheet Preview Page 2 SVG034R3NL3C-2LF Datasheet Preview Page 3

Datasheet Details

Part number:

SVG034R3NL3C-2LF, SVG034R3NL3C-2LFTR-SilanSemiconductors

Manufacturer:

Silan Semiconductors

File Size:

473.67 KB

Description:

30v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVG034R3NL3C-2LF, SVG034R3NL3C-2LFTR-SilanSemiconductors.
Please refer to the document for exact specifications by model.
