SVG031R7NL3C-SilanMicroelectronics_removed.pdf
Datasheet Details
Part number:
SVG031R7NL3C, SVG031R7NL3C-SilanMicroelectronics
Manufacturer:
Silan Microelectronics
File Size:
501.22 KB
Description:
30v n-channel mosfet.
Note:
This datasheet PDF includes multiple part numbers: SVG031R7NL3C, SVG031R7NL3C-SilanMicroelectronics.
Please refer to the document for exact specifications by model.

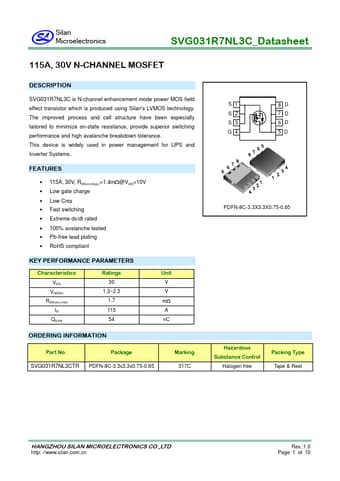

SVG031R7NL3C, SVG031R7NL3C-SilanMicroelectronics, 30V N-CHANNEL MOSFET
SVG031R7NL3C is N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology.
The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance and high avalanche breakdown to
SVG031R7NL3C Features
* 115A, 30V, RDS(on)(typ.)=1.4m@VGS=10V
* Low gate charge
* Low Crss
* Fast switching
* Extreme dv/dt rated
* 100% avalanche tested
* Pb-free lead plating
* RoHS compliant KEY PERFORMANCE PARAMETERS Characteristics VDS VGS(th) RDS(on),max ID Qg.typ Ratings 30 1.3~
