SVG041R2NL5

40V N-CHANNEL MOSFET

SVG041R2NL5 Features

* 150A, 40V, RDS(on)(typ.)=1.0m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Extreme dv/dt rated

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant S1 S2 S3 G4 8D 7D 6D 5D 8 7 6 5 65 87 4 23 1 1 32 4 PDFN-8-5X6X0.95-1.27 KEY PERFORMANC

SVG041R2NL5 General Description

SVG041R2NL5 is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance. This device is widely used i.

SVG041R2NL5 Datasheet (376.32 KB)

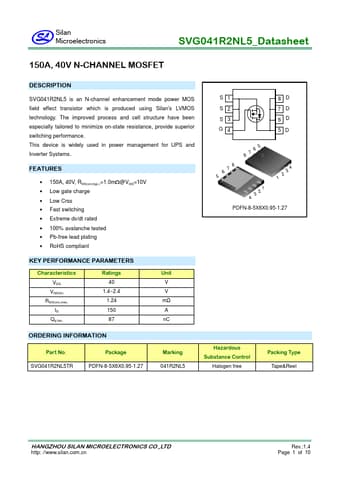

Preview of SVG041R2NL5 PDF

Datasheet Details

Part number:

SVG041R2NL5

Manufacturer:

Silan Microelectronics

File Size:

376.32 KB

Description:

40v n-channel mosfet.
