SVG032R4NL3 Datasheet - Silan Microelectronics

SVG032R4NL3 30V N-CHANNEL MOSFET

SVG032R4NL3 is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance and high avalanche breakdown .

SVG032R4NL3 Features

* 100A, 30V, RDS(on)(typ.)=2.0m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Extreme dv/dt rated

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant KEY PERFORMANCE PARAMETERS Characteristics VDS VGS(th) RDS(on),max. ID Qg.typ. Ratings 30 1.

SVG032R4NL3-SilanMicroelectronics.pdf

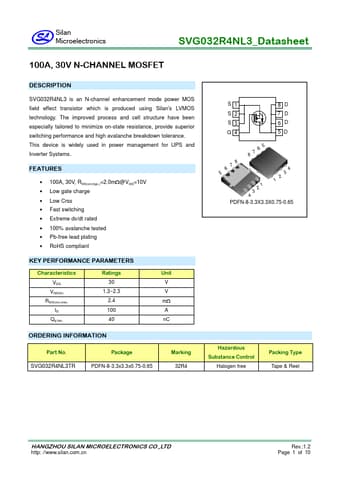

Preview of SVG032R4NL3 PDF
SVG032R4NL3 Datasheet Preview Page 2 SVG032R4NL3 Datasheet Preview Page 3

Datasheet Details

Part number:

SVG032R4NL3

Manufacturer:

Silan Microelectronics

File Size:

418.14 KB

Description:

30v n-channel mosfet.
